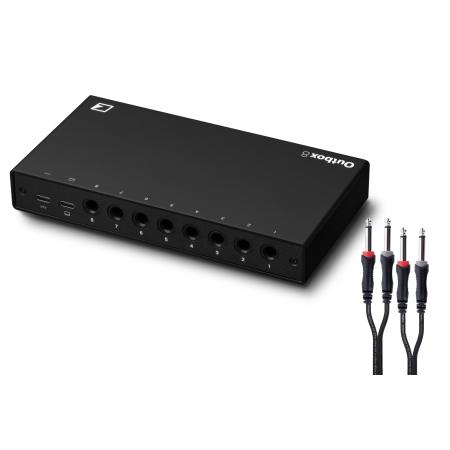

Elektron Outbox 8 – 8-Channel Audio/CV Breakout Box
The Outbox 8 is a versatile 8-channel audio/CV breakout box and USB host/device designed to expand your connectivity while opening up new creative possibilities. It adds eight fully configurable physical outputs to a connected device, allowing you to send audio and CV signals in any combination supported by the device.
Route your audio signal channel by channel to mixers, effects and more. Alternatively, convert MIDI into CV signals to control your modular system and other CV-controllable equipment. The choice is yours.
The Outbox 8 is compatible with Elektron devices that support Overbridge, USB Class Compliant MIDI devices, and many USB Class Compliant audio devices. USB MIDI support is comprehensive, while audio compatibility may vary depending on the manufacturer and firmware. For the latest confirmed device compatibility, visit Elektronauts.
The Outbox 8 also functions as an audio interface, adding eight additional outputs to your computer.
Technical Specifications
- 8× 1/4-inch outputs for impedance-balanced, DC-coupled audio/CV signals
- 48 kHz, 32-bit D/A converters
- CV output range: ±5 V
- CV signal types: GROUNDED, PITCH V/OCT, PITCH HZ/V, VALUE LIN, TRIG, GATE and CLOCK
- 1× USB Type-C power input
- 1× USB 2.0 High-Speed Type-C data port supporting USB Power Delivery, dual-role data and dual-role power
- 1× status LED
Power supply: 5 V / 0.5 A / 2.5 W or higher
Dimensions (W × D × H): 176 × 90 × 28 mm (including feet)
Weight: approx. 0.35 kg
